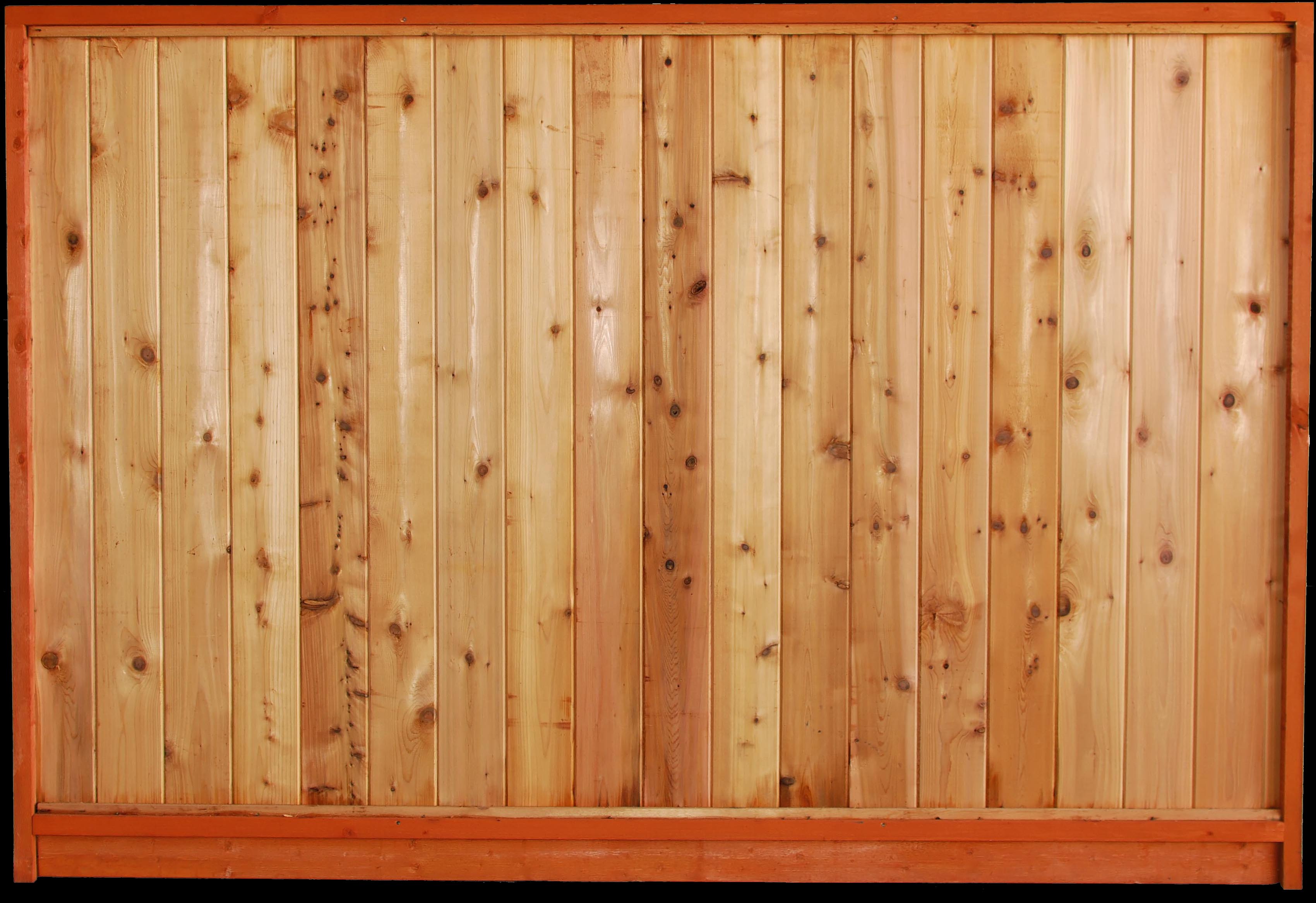

Solid Fence Panel

          2 x 4 spf frame (spruce pine fir)

• 4 square edge, no wane (no bark)
• grooved so the boards don’t fall out, combed and stained cedar tone
•  Premium Grade cedar fence boards
• 1 x 6 Tongue and Groove
• no holes from knots, no wane (bark)
• tight knots
• Full length 1 x 1 nailing strips inside the frame for extra support.
• Full length kick (board that helps support the bottom of the panel)
• Spiral nails

Available Size	Actual Size	Article Number
5 x 8	53 ½ ” x 96”	1000131674
6 x 8	65 ½ ” x 96”	1000159272
3 x 5 gate	36” x 53 ½ ”	1000146376
3 x 6 gate	36” x 65 ½ ”	1000146377

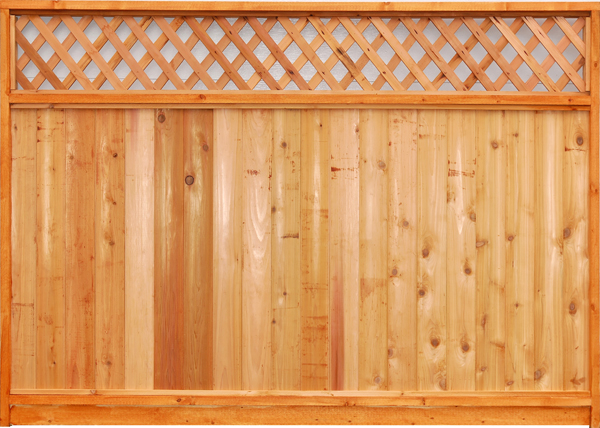

Diagonal Lattice Top Fence Panel



• 2 x 4 (spf -spruce pine fir)
• 4 square edge, no wane (bark)
• grooved so the boards don’t fall out, combed and stained cedar tone
•  Premium Grade cedar fence boards
• 1 x 6 Tongue and Groove
• no holes from knots falling out, no wane (no bark)
• tight knots
• Lath
• Heavy duty, 3/4” doubled up
• 38 pieces per screen
• Full length 1 x 1 nailing strips on the lattice and boards
• Full length kick (board that helps support the bottom of the panel)
• Spiral nails

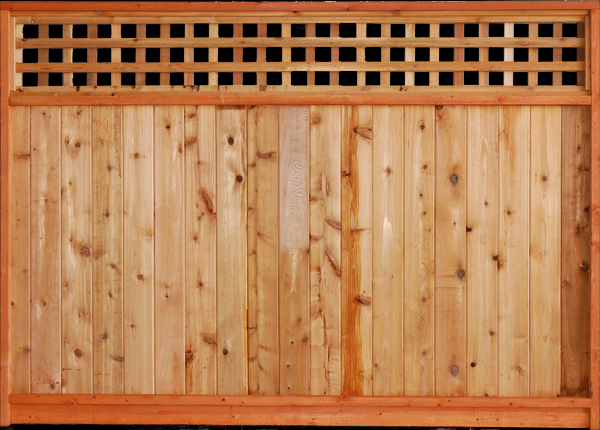

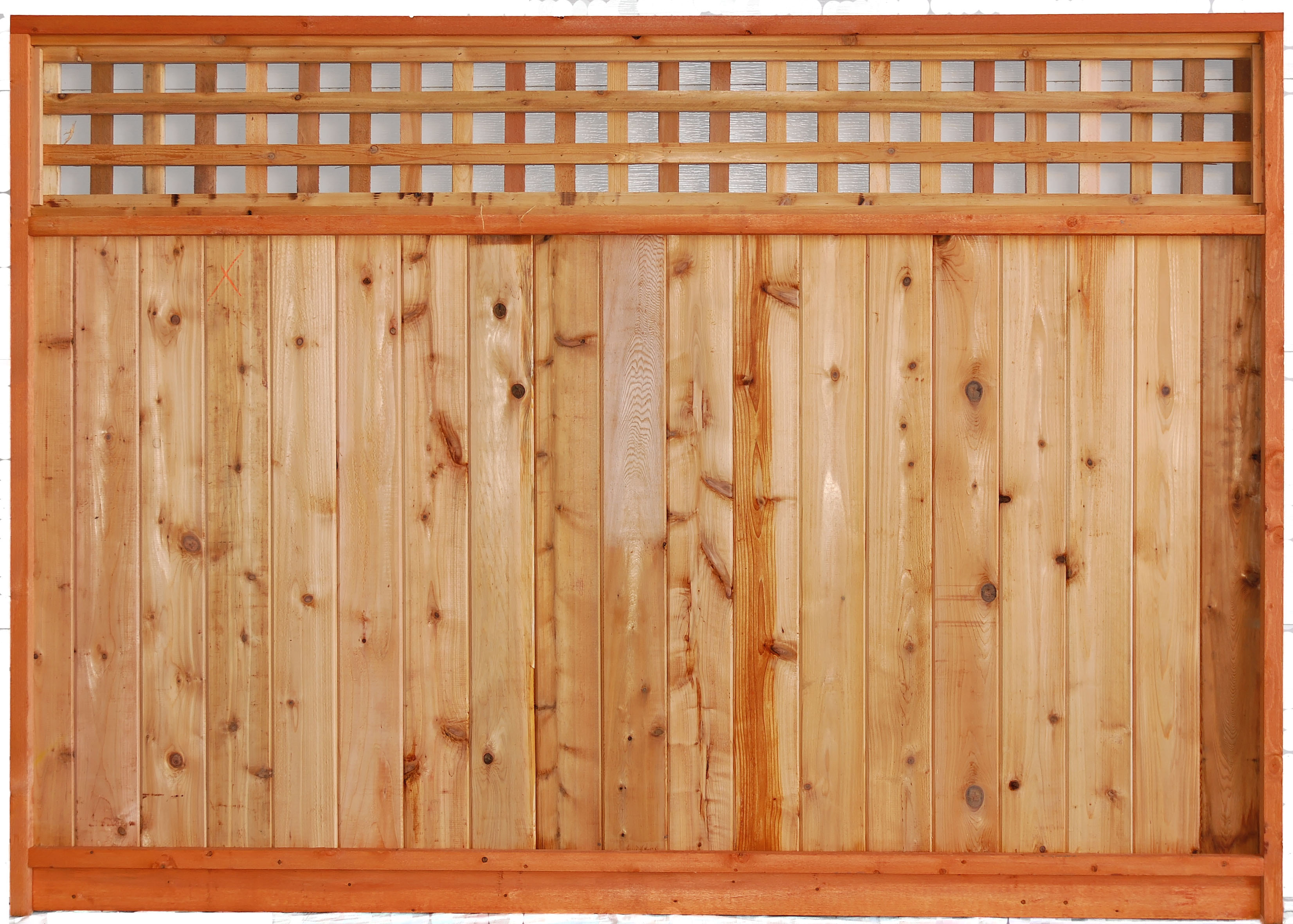

Square Top Lattice Fence Panel

• 2 x 4 (spf-spruce pine fir)
• 4 square edge, no wane (no bark)
• combed, grooved so the boards stay in the frame and stained cedar tone
• Premium Grade cedar fence boards
• 1 x 6 T & G boards (tongue and groove boards)
• no holes from knots falling out, no wane (no bark)
• tight knots
• Lath
• Heavy duty, 3/4” doubled up
• 38 pieces per screen
• Full length 1 x 1 nailing strips on the lattice and boards
• Full length kick (board that helps support the bottom of the panel)
• Spiral nails

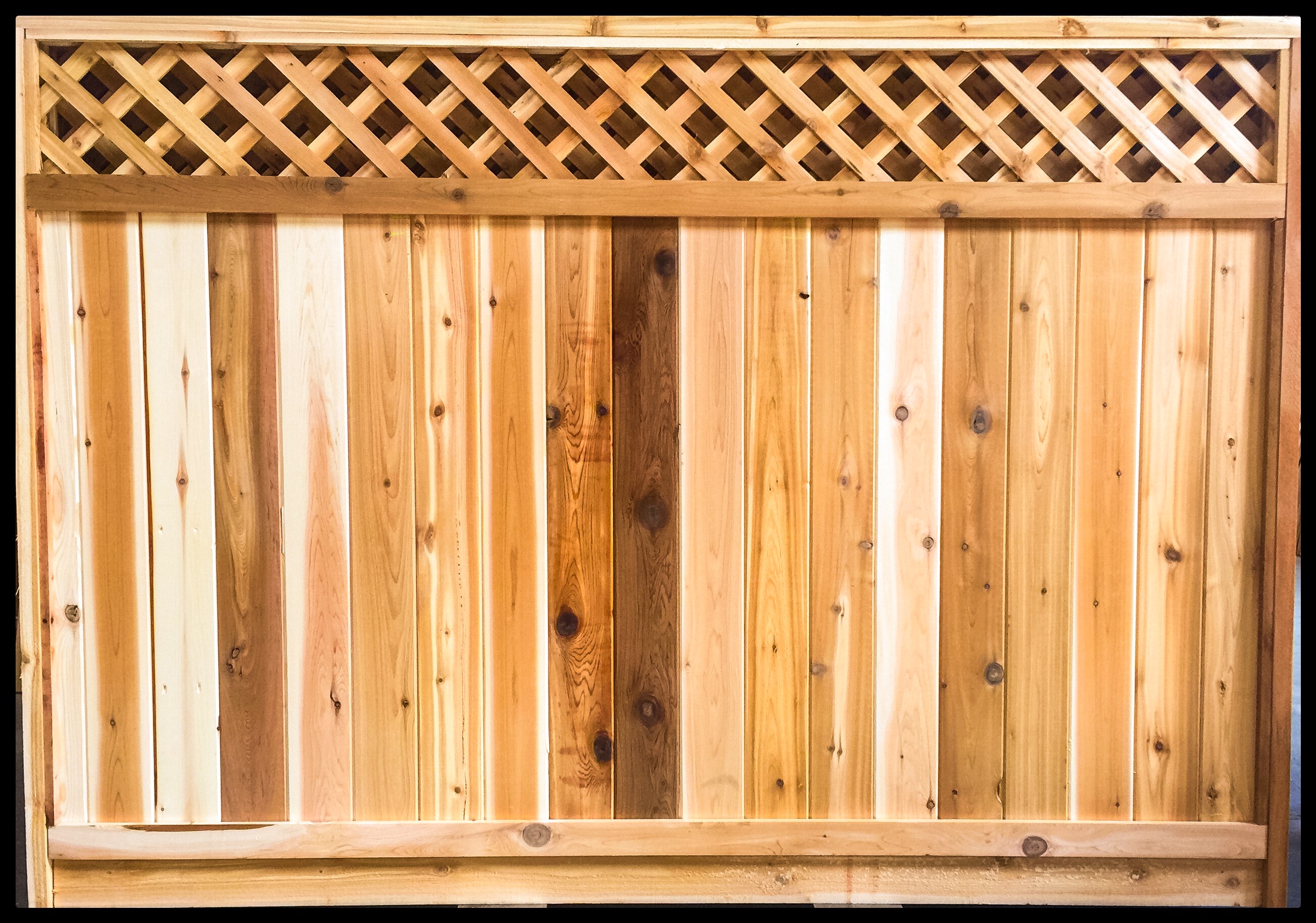

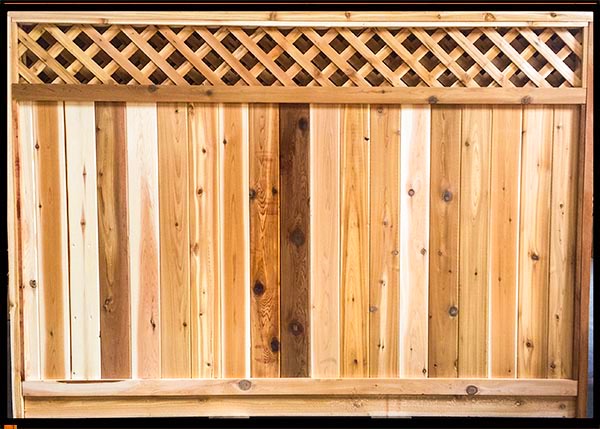

Contractor Panel

• 2 x 3 Premium cedar frame
• no wane (no bark)
• Contractor Grade cedar fence boards
• 1 x 6 T & G, no wane (no bark), no holes, tight knots
• Lath
• Heavy duty, 3/4” doubled up, 34 pieces per screen
• Full length 1 x 3 mid rail holds the boards in place
• 1” staples attach lattice and boards to mid rail
• Full length 1 x 1 cedar nailing strip on lattice and boards
• Full length 1 x 6 cedar kick (supports the bottom of the panel)
• Spiral nails

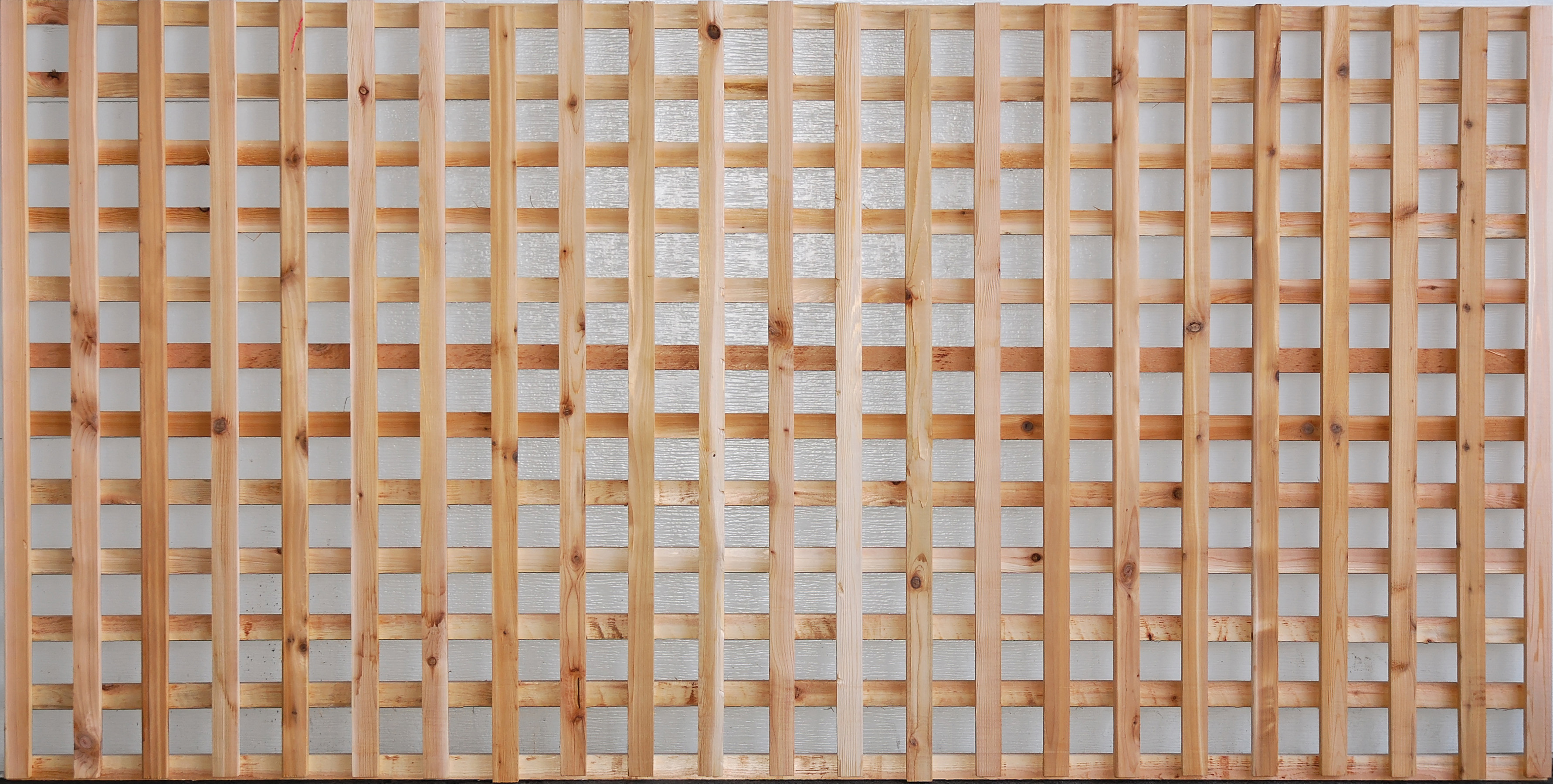

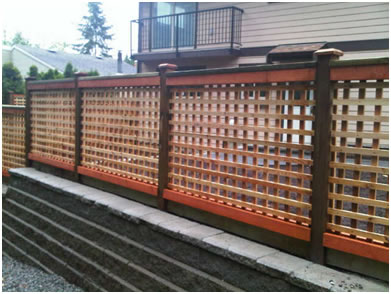

Privacy Screen Lattice



Our privacy screens are made of heavy duty 1 x 2 cedar strips. The perimeter is completed nailed along with every second cross section. The strips are tight knot.
